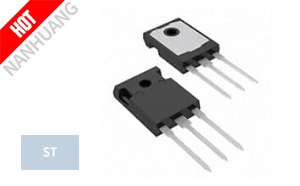

STW70N60M2 Images
- Manufacturer: STMicroelectronics(ST)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: TO-247
- Description: MOSFET N-CH 600V 68A TO247
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
STW70N60M2 Specifications:
- MfrPart.: STW70N60M2
- Mfr: STMicroelectronics
- Description: MOSFET N-CH 600V 68A TO247
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tube
- Series: MDmesh™ II Plus
- PartStatus: Active
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 600 V
- Current-ContinuousDrain(Id)@25°C: 68A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 10V
- RdsOn(Max)@IdVgs: 40mOhm @ 34A, 10V
- Vgs(th)(Max)@Id: 4V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 118 nC @ 10 V
- Vgs(Max): ±25V
- InputCapacitance(Ciss)(Max)@Vds: 5200 pF @ 100 V
- FETFeature: -
- PowerDissipation(Max): 450W (Tc)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Through Hole
- SupplierDevicePackage: TO-247
- STW70N60M2 STMicroelectronics, MOSFET N-CH 600V 68A TO247, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
STW70N60M2, ST authentic parts in stock from STMicroelectronics authorized distributors, order today, can ship immediately.
