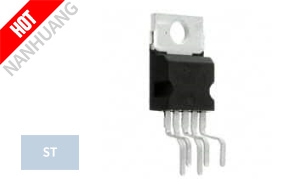

STPLED524 Images
- Manufacturer: STMicroelectronics(ST)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: TO-220AB
- Description: MOSFET N-CH 525V 4A TO220
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
STPLED524 Specifications:
- MfrPart.: STPLED524
- Mfr: STMicroelectronics
- Description: MOSFET N-CH 525V 4A TO220
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tube
- Series: -
- PartStatus: Active
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 525 V
- Current-ContinuousDrain(Id)@25°C: 4A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 10V
- RdsOn(Max)@IdVgs: 2.6Ohm @ 2.2A, 10V
- Vgs(th)(Max)@Id: 4.5V @ 50µA
- GateCharge(Qg)(Max)@Vgs: 12 nC @ 10 V
- Vgs(Max): ±30V
- InputCapacitance(Ciss)(Max)@Vds: 340 pF @ 100 V
- FETFeature: -
- PowerDissipation(Max): 45W (Tc)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Through Hole
- SupplierDevicePackage: TO-220AB
- STPLED524 STMicroelectronics, MOSFET N-CH 525V 4A TO220, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
STPLED524, ST authentic parts in stock from STMicroelectronics authorized distributors, order today, can ship immediately.
