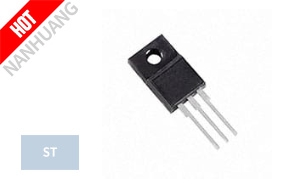

STP36NF06L Images
- Manufacturer: STMicroelectronics(ST)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: TO-220AB
- Description: MOSFET N-CH 60V 30A TO220AB
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
STP36NF06L Specifications:
- MfrPart.: STP36NF06L
- Mfr: STMicroelectronics
- Description: MOSFET N-CH 60V 30A TO220AB
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tube
- Series: STripFET™ II
- PartStatus: Active
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 60 V
- Current-ContinuousDrain(Id)@25°C: 30A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 5V, 10V
- RdsOn(Max)@IdVgs: 40mOhm @ 15A, 10V
- Vgs(th)(Max)@Id: 2.5V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 17 nC @ 5 V
- Vgs(Max): ±18V
- InputCapacitance(Ciss)(Max)@Vds: 660 pF @ 25 V
- FETFeature: -
- PowerDissipation(Max): 70W (Tc)
- OperatingTemperature: -55°C ~ 175°C (TJ)
- MountingType: Through Hole
- SupplierDevicePackage: TO-220AB
- STP36NF06L STMicroelectronics, MOSFET N-CH 60V 30A TO220AB, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
STP36NF06L, ST authentic parts in stock from STMicroelectronics authorized distributors, order today, can ship immediately.
