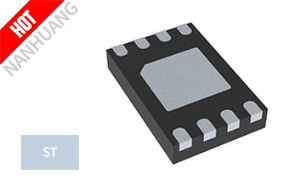

STL60N3LLH5 Images
- Manufacturer: STMicroelectronics(ST)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: PowerFlat™ (5x6)
- Description: MOSFET N-CH 30V 60A POWERFLAT
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
STL60N3LLH5 Specifications:
- MfrPart.: STL60N3LLH5
- Mfr: STMicroelectronics
- Description: MOSFET N-CH 30V 60A POWERFLAT
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: STripFET™ V
- PartStatus: Obsolete
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 30 V
- Current-ContinuousDrain(Id)@25°C: 60A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 4.5V, 10V
- RdsOn(Max)@IdVgs: 7.1mOhm @ 8.5A, 10V
- Vgs(th)(Max)@Id: 1V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 8 nC @ 4.5 V
- Vgs(Max): ±22V
- InputCapacitance(Ciss)(Max)@Vds: 1290 pF @ 25 V
- FETFeature: -
- PowerDissipation(Max): 60W (Tc)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Surface Mount
- SupplierDevicePackage: PowerFlat™ (5x6)
- STL60N3LLH5 STMicroelectronics, MOSFET N-CH 30V 60A POWERFLAT, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
STL60N3LLH5, ST authentic parts in stock from STMicroelectronics authorized distributors, order today, can ship immediately.
