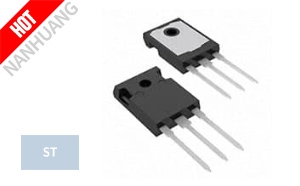

STGW60H60DLFB Images
- Manufacturer: STMicroelectronics(ST)
- Category: Discrete Semiconductor Products~Transistors - IGBTs - Single Package/Case: TO-247-3
- Description: IGBT 600V 80A 375W TO-247
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
STGW60H60DLFB Specifications:
- MfrPart.: STGW60H60DLFB
- Mfr: STMicroelectronics
- Description: IGBT 600V 80A 375W TO-247
- Product Category: Discrete Semiconductor Products~Transistors - IGBTs - Single
- Package: Tube
- Series: -
- PartStatus: Active
- IGBTType: Trench Field Stop
- Voltage-CollectorEmitterBreakdown(Max): 600 V
- Current-Collector(Ic)(Max): 80 A
- Current-CollectorPulsed(Icm): 240 A
- Vce(on)(Max)@VgeIc: 2V @ 15V, 60A
- Power-Max: 375 W
- SwitchingEnergy: 626µJ (off)
- InputType: Standard
- GateCharge: 306 nC
- Td(on/off)@25°C: -/160ns
- TestCondition: 400V, 60A, 5Ohm, 15V
- ReverseRecoveryTime(trr): -
- OperatingTemperature: -55°C ~ 175°C (TJ)
- MountingType: Through Hole
- Package/Case: TO-247-3
- STGW60H60DLFB STMicroelectronics, IGBT 600V 80A 375W TO-247, Discrete Semiconductor Products~Transistors - IGBTs - Single
