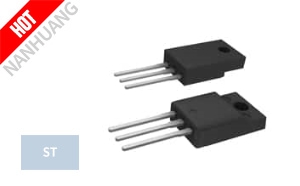

STF22NM60ND Images
- Manufacturer: STMicroelectronics(ST)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: TO-220FP
- Description: MOSFET N-CH 600V 17A TO220FP
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
STF22NM60ND Specifications:
- MfrPart.: STF22NM60ND
- Mfr: STMicroelectronics
- Description: MOSFET N-CH 600V 17A TO220FP
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tube
- Series: Automotive, AEC-Q101, FDmesh™ II
- PartStatus: Obsolete
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 600 V
- Current-ContinuousDrain(Id)@25°C: 17A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 10V
- RdsOn(Max)@IdVgs: 220mOhm @ 8.5A, 10V
- Vgs(th)(Max)@Id: 5V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 60 nC @ 10 V
- Vgs(Max): ±25V
- InputCapacitance(Ciss)(Max)@Vds: 1800 pF @ 50 V
- FETFeature: -
- PowerDissipation(Max): 30W (Tc)
- OperatingTemperature: 150°C (TJ)
- MountingType: Through Hole
- SupplierDevicePackage: TO-220FP
- STF22NM60ND STMicroelectronics, MOSFET N-CH 600V 17A TO220FP, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
STF22NM60ND, ST authentic parts in stock from STMicroelectronics authorized distributors, order today, can ship immediately.
